277 Heavy Duty Stainless Steel

Highly Flexible with PVC Sheath

supaflex-277

Material	Stainless Steel
Construction	304 Stainless Steel Core / Black PVC Sheath
Flexibility	Excellent
Protection Index	IP54 when used with standard fittings IP67 when used with liquidtight fittings
UV Resistance	Good
Flame Retarded	Self Extinguishing
Standards	AS 2053 Parts 1 & 8
Compression	1250N
Pullout	250N

logo-standards-australia

Specifications

Trade Size (mm)	Code	ID (mm)	OD (mm)	Radius (mm)	Roll Length (m)
16	277-012	12.6	17.8	30	50
20	277-016	16.1	20.5	35	50
25	277-020	21.0	26.5	45	50
32	277-025	26.5	33.1	55	50

Applications

Food & Beverage, marine, high corrosion and liquid areas.

Temperature Rating

– 10 to 105 degrees centigrade

923 Straight Metric Fittings

Stainless Steel

923SSstraight

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	923-016	10
20	20 x 1.5	923-020	10
25	25 x 1.5	923-025	10
32	32 x 1.5	923-032	10
40	40 x 1.5	923-040	10
50	50 x 1.5	923-050	10
63	63 x 1.5	923-063	10

927 90° Metric Fittings

Stainless Steel

927SS90

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	927-016	10
20	20 x 1.5	927-020	10
25	25 x 1.5	927-025	10
32	32 x 1.5	927-032	10
40	40 x 1.5	927-040	10
50	50 x 1.5	927-050	10
63	63 x 1.5	927-063	10

Fitting Specifications

Made of Stainless Steel
Superior UV Resistance
IP rating of 67
Standards meets AS2503 Parts 1 & 8
Standards meets CEI 50086-2-3
Temp rating of -50 to 250 degrees centigrade
Metric thread pitch is 1.5mm

962 Swivel Metric Fittings

Nickel Plated Brass

962swNPB1

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	962-016	10
20	20 x 1.5	962-020	10
25	25 x 1.5	962-025	10
32	32 x 1.5	962-032	10
40	40 x 1.5	962-040	10
50	50 x 1.5	962-050	10
63	63 x 1.5	962-063	10

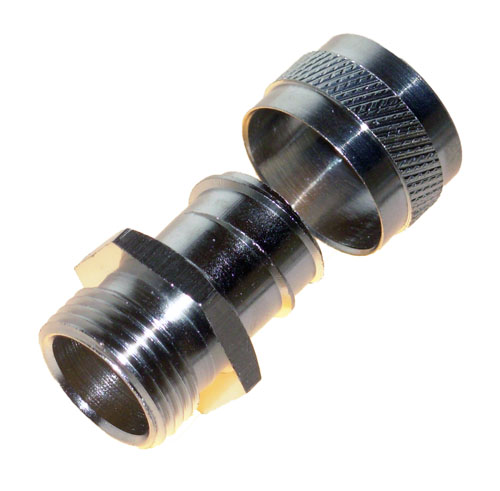

961 Fixed Metric Fittings

Nickel Plated Brass

961NPB2p1

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	961-016	10
20	20 x 1.5	961-020	10
25	25 x 1.5	961-025	10
32	32 x 1.5	961-032	10
40	40 x 1.5	961-040	10
50	50 x 1.5	961-050	10
63	63 x 1.5	961-063	10

Fitting Specifications

Made of Nickel Plated Brass
Superior UV Resistance
IP rating of 54
Standards meets AS2503 Parts 1 & 8
Standards meets CEI 50086-2-3
Temp rating of -50 to 250 degrees centigrade
Metric thread pitch is 1.5mm
