271 Liquidtight Conduit

rhino-271

Material	Galvanise / PVC
Construction	Galvanised Core with Grey PVC Sheath
Flexibility	Good
Protection Index	IP67 EN60529
UV Resistance	Good
Flame Retarded	Non Flame Propagating
Standards	AS 2053 Parts 1 & 8
Compression	1250N
Pullout	1000N

logo-standards-australia

Specifications

Trade Size (mm)	Code	ID (mm)	OD (mm)	Radius (mm)	Roll Length (m)
16	271-016	12.6	17.8	50	25
20	271-020	16.1	21.1	80	25
25	271-025	21.0	26.5	110	25
32	271-032	26.5	33.1	145	10
40	271-040	35.1	41.5	180	10
50	271-050	40.4	47.9	240	10
63	271-063	51.6	59.9	345	10

Applications

Mining, Crane, Hoist, Conveyor and Railway sectors

Temperature Rating

– 10 to 105 degrees centigrade
short term 150 degrees centigrade

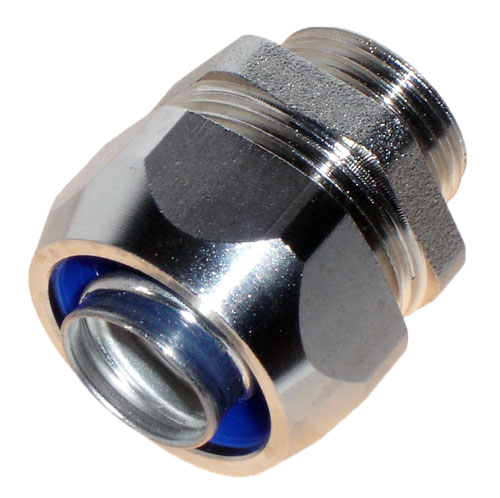

920 Straight Metric Fittings

Nickel Plated Brass

920NPBstraight

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	920-016	10
20	20 x 1.5	920-020	10
25	25 x 1.5	920-025	10
32	32 x 1.5	920-032	10
40	40 x 1.5	920-040	10
50	50 x 1.5	920-050	10
63	63 x 1.5	920-063	10

925 90° Metric Fittings

Nickel Plated Brass

925NPB90

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	925-016	10
20	20 x 1.5	925-020	10
25	25 x 1.5	925-025	10
32	32 x 1.5	925-032	10
40	40 x 1.5	925-040	10
50	50 x 1.5	925-050	10
63	63 x 1.5	925-063	10

930 45° Metric Fittings

Nickel Plated Brass

930NPB45

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	930-016	10
20	20 x 1.5	930-020	10
25	25 x 1.5	930-025	10
32	32 x 1.5	930-032	10
40	40 x 1.5	930-040	10
50	50 x 1.5	930-050	10
63	63 x 1.5	930-063	10

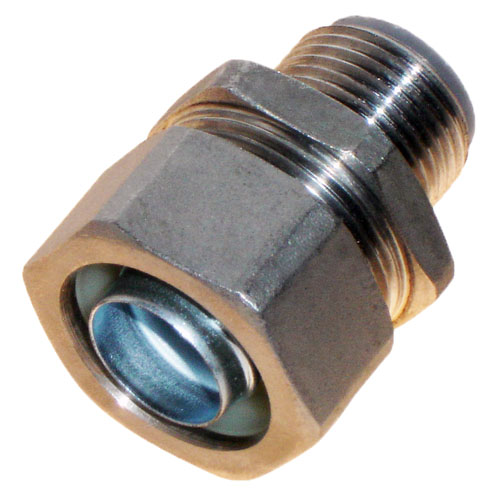

923 Straight Metric Fittings

Stainless Steel

923SSstraight

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	923-016	10
20	20 x 1.5	923-020	10
25	25 x 1.5	923-025	10
32	32 x 1.5	923-032	10
40	40 x 1.5	923-040	10
50	50 x 1.5	923-050	10
63	63 x 1.5	923-063	10

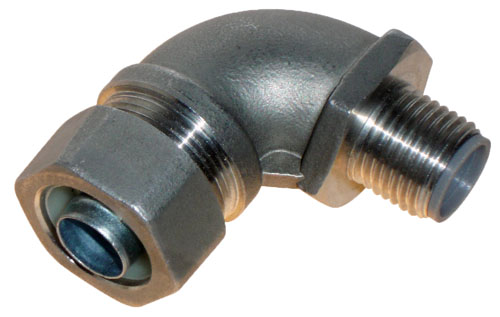

927 90° Metric Fittings

Stainless Steel

927SS90

Trade Size	Thread (mm)	Code	Pack Qty
16	16 x 1.5	927-016	10
20	20 x 1.5	927-020	10
25	25 x 1.5	927-025	10
32	32 x 1.5	927-032	10
40	40 x 1.5	927-040	10
50	50 x 1.5	927-050	10
63	63 x 1.5	927-063	10

Fitting Specifications

Made of Nickel Plated Brass 920, 925, 930
Made of Stainless Steel 923, 927
Superior UV Resistance
IP rating of 67
Standards meets AS2503 Parts 1 & 8
Standards meets CEI 50086-2-3
Temp rating of -50 to 250 degrees centigrade
Metric thread pitch is 1.5mm
